This was a real relocation, not a study. I led the layout design for two production facilities at Tunca: an R&D machine shop and the TIM Polyplast extrusion lines. The work was about flow, fitting production, logistics, and storage into tight spaces without slowing anything down. That meant designated forklift routes, overhead crane paths for maintenance, ergonomic and safe work areas, and a separate room for fragile, expensive stock. Details are held back for contractual reasons, but the aim throughout was more output from the same walls.
Process
Building mapping with a precise laser caliper
Mapping of each machine and its requirements
Field research and interviews with workers on ergonomics
Flow optimisation with an industrial engineer
Measured, not estimated
I mapped both buildings with a laser caliper before drawing anything as there were no blueprints available. Every machine was measured, along with its service clearance, its power and air requirements, and the space a person needs to stand beside it and work. Assumptions are what make layouts fail.
The layout was optimised for material flow with an industrial engineer, not for how many machines fit. Designated forklift routes, overhead crane paths kept clear for maintenance, and a separate sealed room for fragile and expensive stock. Throughput came from movement, not from cramming.

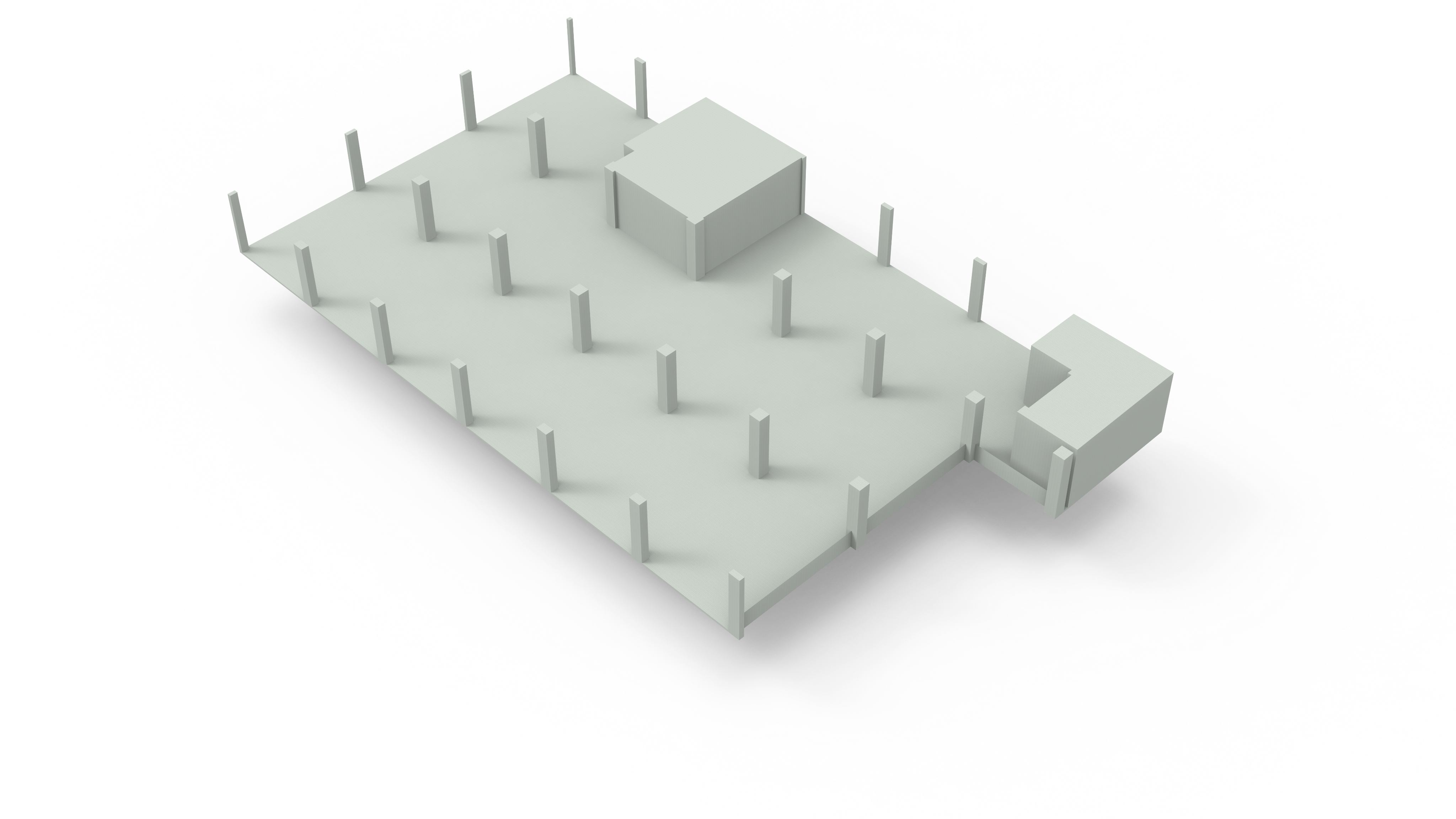

Previous factory floor

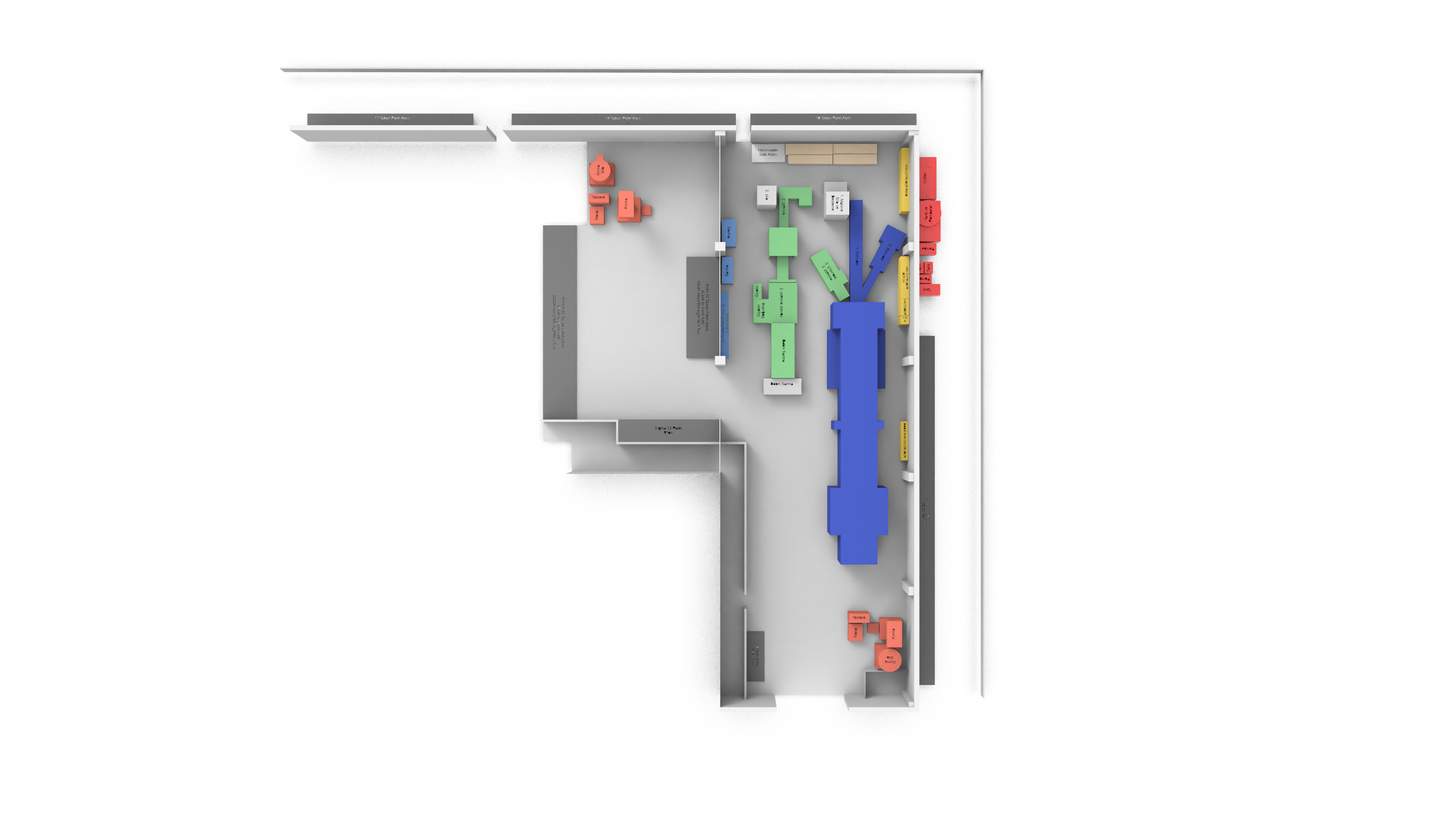

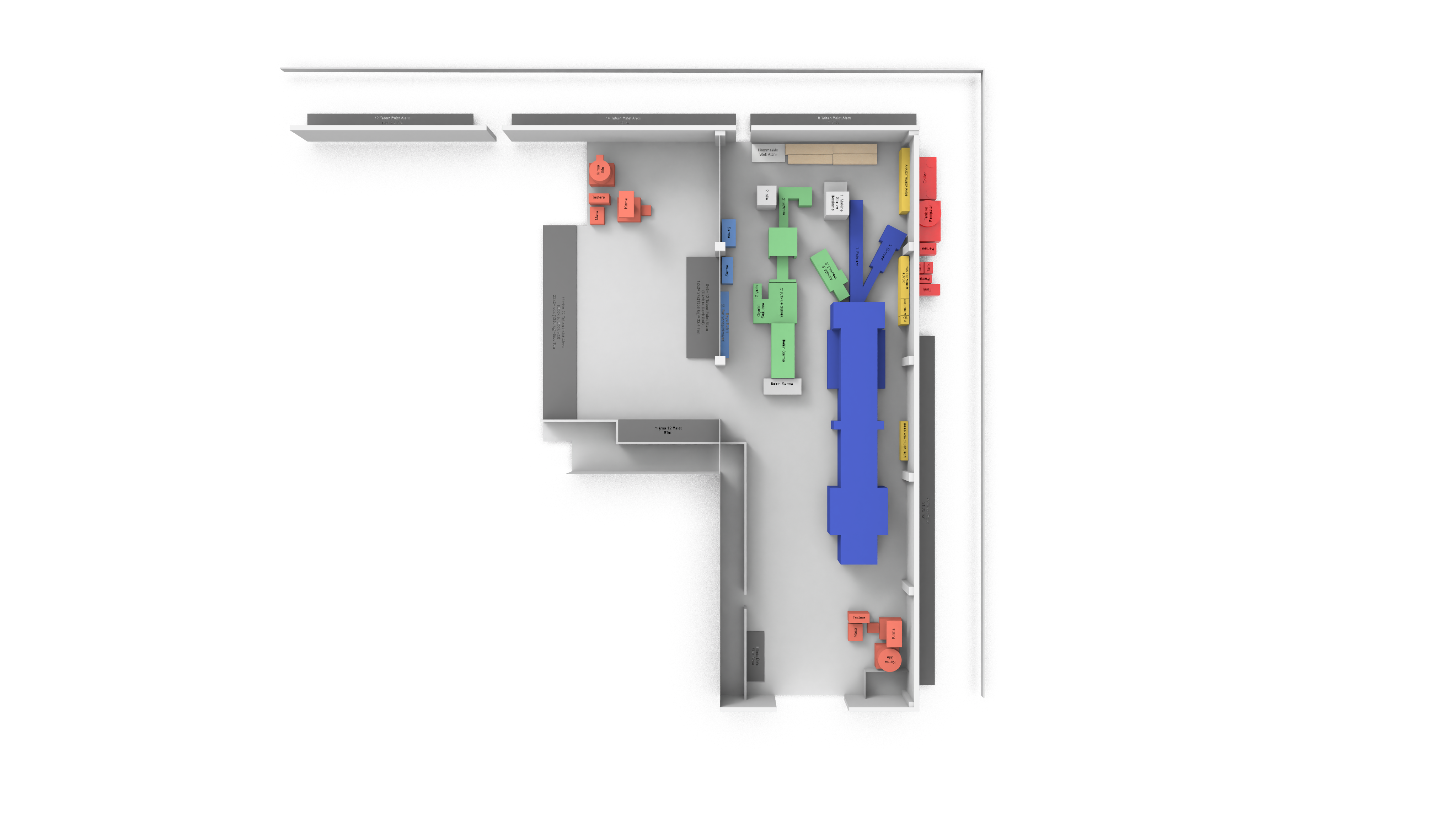

Previous stock area

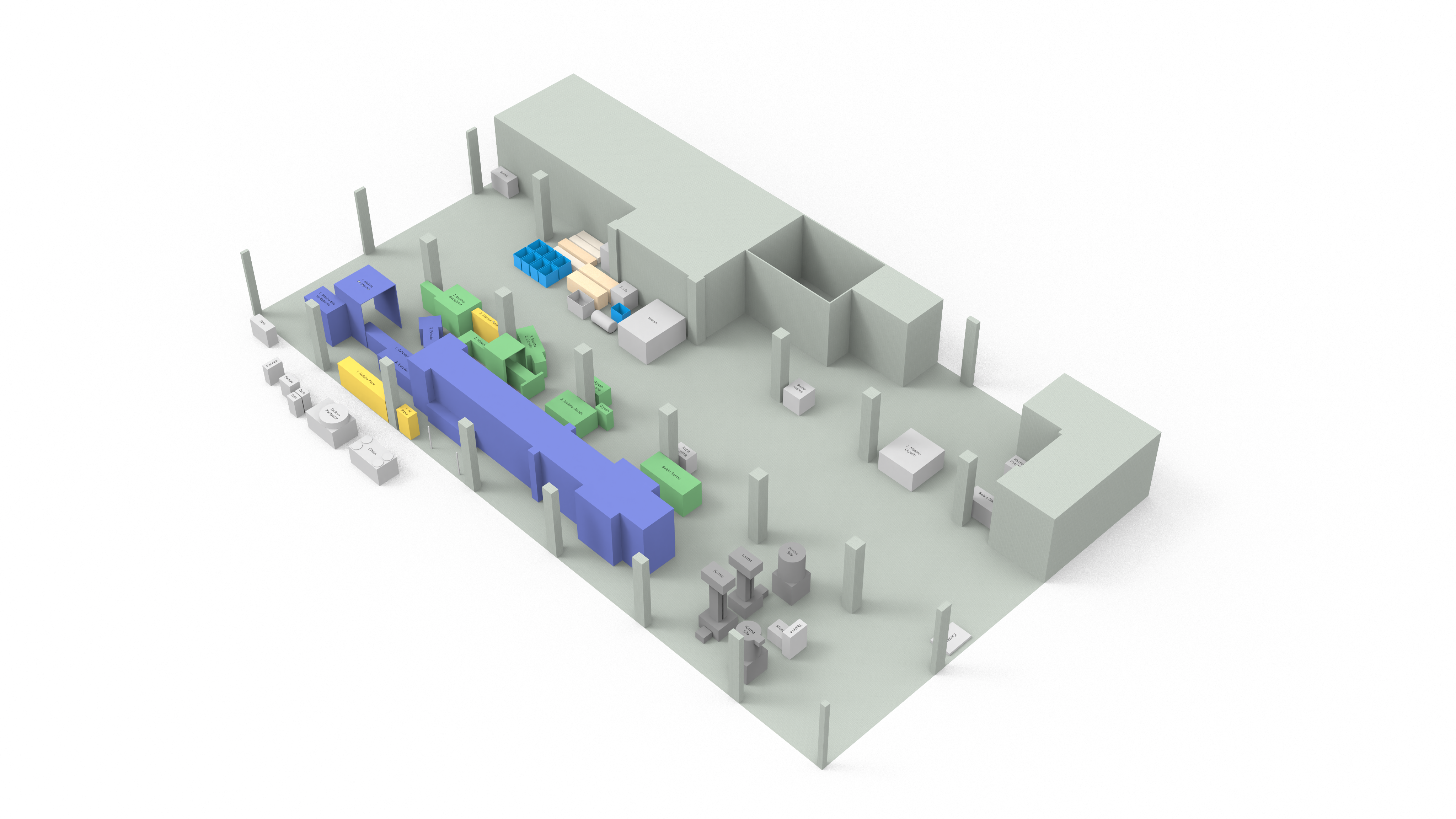

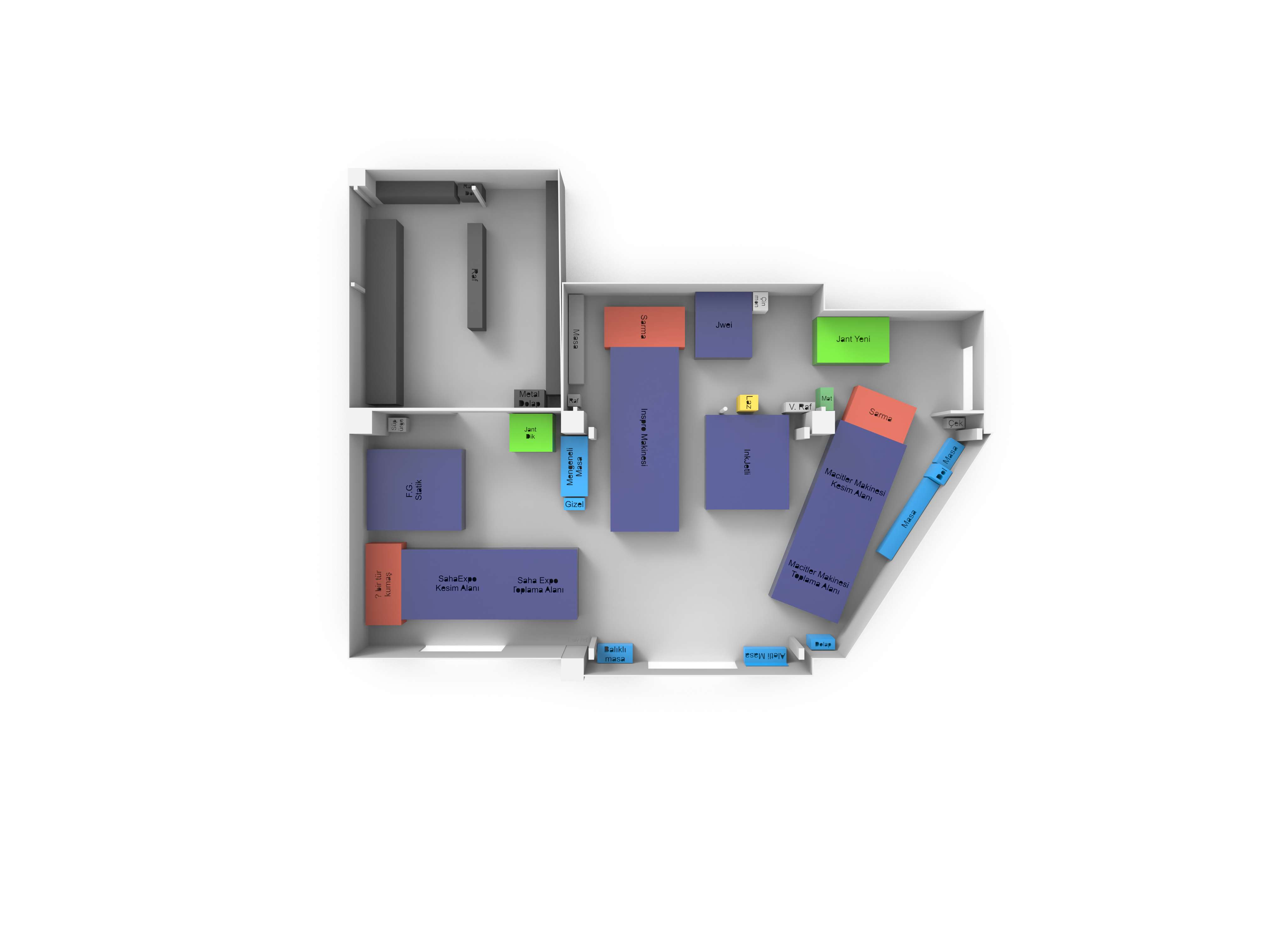

New factory layout including stock area
Bridging the stakeholders
I interviewed the machinists and line workers about where they actually walk, what they carry, and which moves are repeated. Several things that looked efficient for the stakeholders turned out to be a major discomfort or dangerous for the workers. Attending the workers shifts for a week allowed me to map their journeys alongside every crevise of the machines, resulting in a designed loved by the management and the workers for affordability and ease of operations. The star of this design was the strategically placed overhead craine for maintanence, it made the maintanence task of changing die clyinders much easier and 15 minutes faster, all the while saving the budget of renevations an undislosed amount.
Flow before footprint

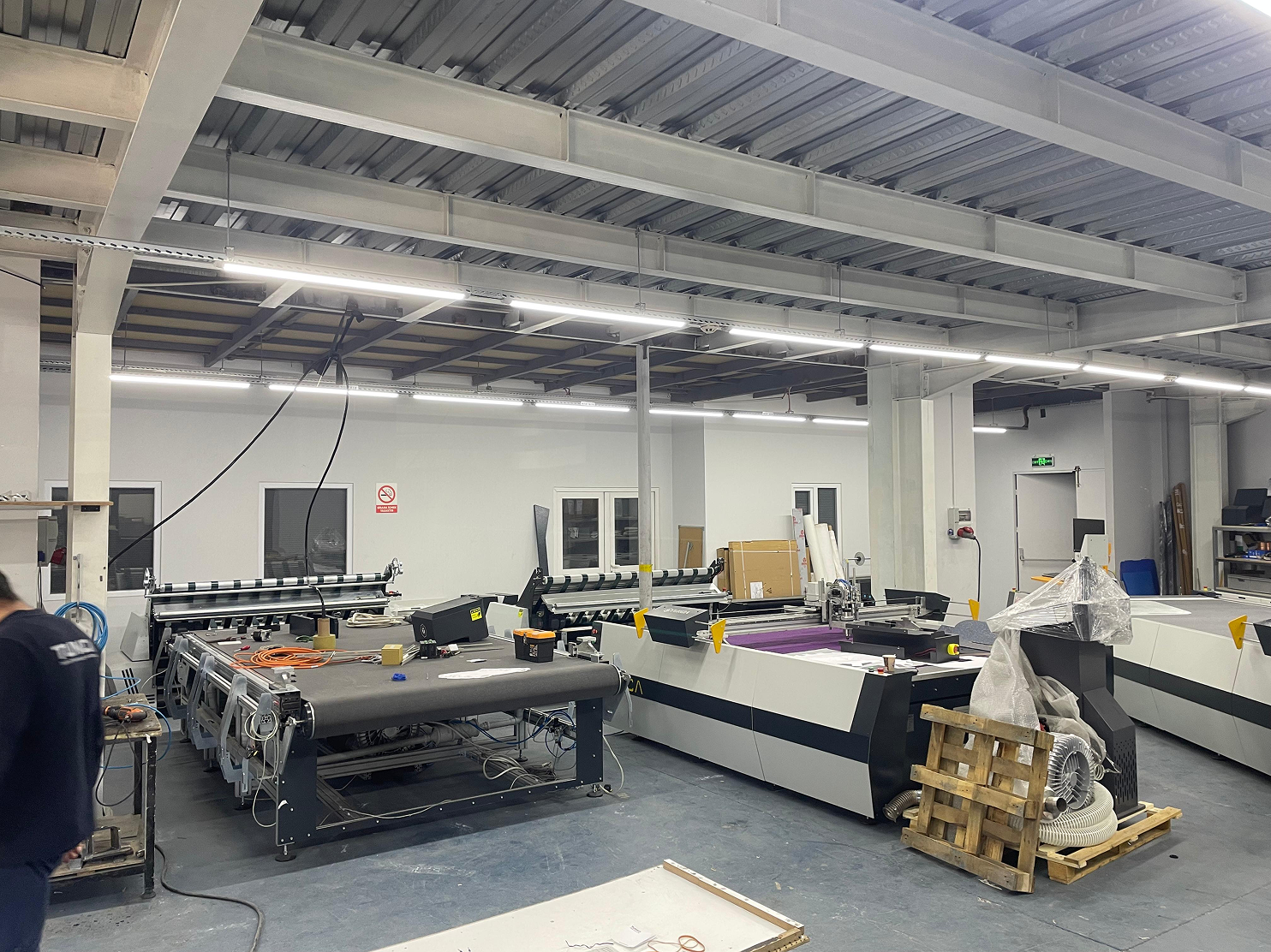

Second facility was used for manufacturing CNC machines, this meant custom work with expensive materials and delicate objects in a confined space. As the company offers near endless customizations for the CNC machines, there is always a chance of a customer walking in to request a demo or inspect the process on their order.
Another challenge is the logistics. There is atleast one machine transport a week and a new order being started, alongside the machines which travel for specific demonstrations. There is also the need to have a secure room for the expensive parts and enough room to move around.
A well oiled workshop
Some walls were demolished and some walls were built to create room for a tightly organized storage area. The gaps between machines are arranged for pallets and engineers to fit comfortably between machines, and zones are established to keep priority workflow in ease to transport.
Ability to improve
Machines are modular and are built with customized parts. Each section can be improved with yearly generations and for the specific material they need to cut. A priority area is established at the middle zone for fast maintanence tasks.
Two facilities, no downtime

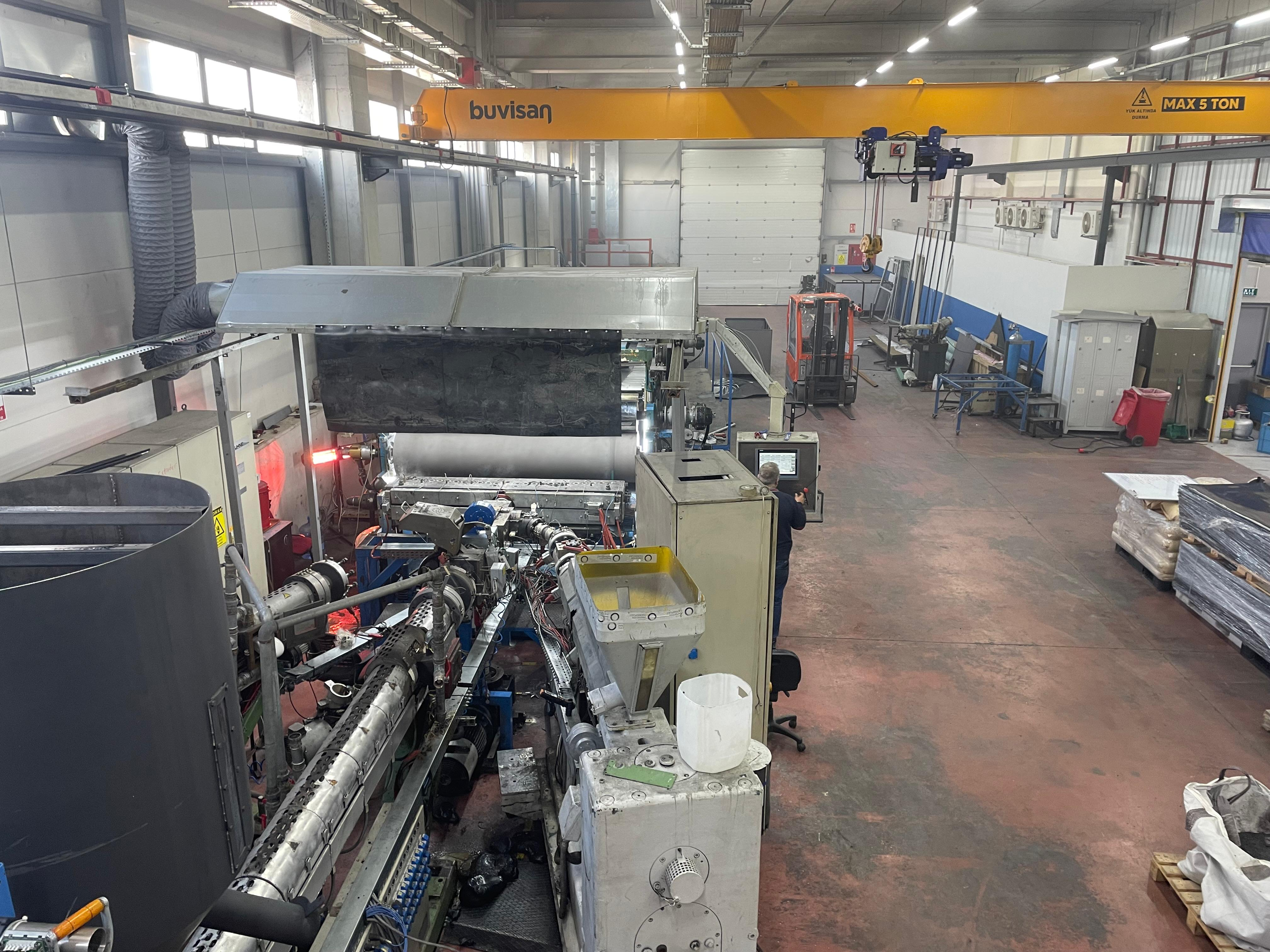

Tunca Machines R&D and TIM Polyplast were relocated and re-laid-out while both remained in production. The 250 tons-per-month extruder lines never stopped. Details are held back for contractual reasons.
